Aboytes Mfg. Abrasive Blasting Systems
|
|
Dry Suction Sandblaster | Dry Hone Sandblaster | Pressurized Blasting System | Pressure Dry Hone Systems
|
 |
|
DRY SUCTION SERIES
Features:
- Fabricated with 14 gauge steel, Continuously welded
- Built in Cyclone to separate abrasive from waste debris
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
Maintains 100% of its value over the years
Heavy-Duty:
- Full length Neoprene gloves and sleeves
- Brass foot control and safety guard
- Blasting gun assembly
- Expanded metal work bench
NO Rivets
NO Spot Welds
NO Caulking Unions
NO Shop/Barrel Vacuum Dust Collectors
|
|
 MODEL: ADS 36
|
|
Model
|
Work Area Dimensions
|

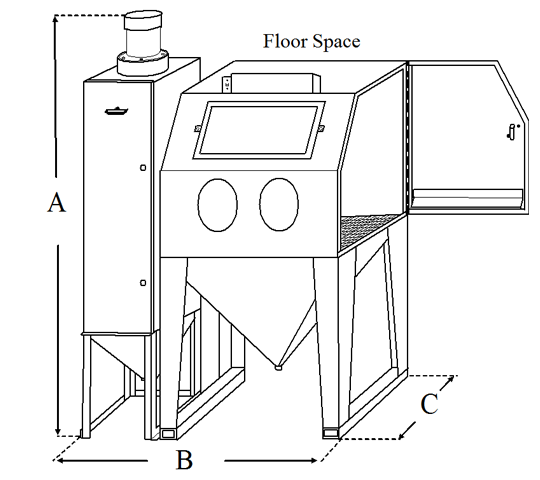

Floor Dimensions
|
Work
Stations
|
Door
Opening
Right Side
|
Electrical
|
Dust
Collector
|
|
ADS
36
|
W:36"
D:30"
H:30"
|
A:87"
B:63"
C:32"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H: 28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
ADS
4830
|
W:48"
D:30"
H:30"
|
A:87"
B:70"
C:32"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H:28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
ADS
4836
|
W:48"
D:36"
H:36"
|
A:87"
B:70"
C:37"
|
1
|
D: 32.5"
E: 26"
F: 12.5"
G: 21.5"
H: 33"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
MODEL: ADS 36-C
|
| Suction Type - Cartridge Series |
|
Features:
- Fabricated with 14 gauge steel, Continuously welded
- Built in Cyclone to separate abrasive from waste debris
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
C-Series Dust Collector:
- Cartridge type dust control system with pneumatic reverse flow pulsing valve
 Dry Suction 36-C Series Brochure
|
|
|
 |
|
MODEL: ADHS 36
|
|
DRY HONE SERIES
Features:
- Fabricated with 14 gauge steel, Continuously welded
- External Cyclone Vortex Air Washing system
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
Maintains 100% of its value over the years
Heavy-Duty:
- Full length Neoprene gloves and sleeves
- Brass foot control and safety guard
- Blasting gun assembly
- Expanded metal work bench
NO Rivets
NO Spot Welds
NO Caulking Unions
NO Shop/Barrel Vacuum Dust Collectors
|
ABOYTES MFG. Cyclone Vortex Reclaiming Systems
are designed to keep abrasive media free of contaminants
while minimizing media waste.
Dry Hone Series Brochure

|
Model
|
Work Area Dimensions
|
Floor Dimensions
|
Work
Stations
|
Door
Opening
Right Side
|
Electrical
|
Dust
Collector
|
|
ADHS
36
|
W:36"
D:30"
H:30"
|
A:87"
B:63"
C:32"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H:28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
ADHS
4830
|
W:48"
D:30"
H:30"
|
A:87"
B:70"
C:32"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H:28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
ADHS
4836
|
W:48"
D:36"
H:36"
|
A:87"
B:70"
C:37"
|
1
|
D: 32.5"
E: 26"
F: 12.5"
G: 21.5"
H: 33"
|
1 Phase
110 voltage
1 switch controls
lights/ motor
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
MODEL: ADHS 36-C
|
| Dry Hone Suction - Cartridge Series |
|
Features:
- Fabricated with 14 gauge steel, Continuously welded
- Built in Cyclone to separate abrasive from waste debris
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
C-Series Dust Collector:
- Cartridge type dust control system with pneumatic reverse flow pulsing valve
Abrasive Reclaiming System
- ABOYTES MFG. Cyclone Vortex Reclaiming Systems
are designed to keep abrasive media free of contaminants
while minimizing media waste.
Dry Hone Suction 36-C Series Brochure
|
|
|
 |
|
 MODEL: ADP 36
|
|
DIRECT PRESSURE SERIES
Features:
- Fabricated with 12 gauge steel, Continuously welded
- 1 cu. ft. abrasive capacity pressure pot
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
Maintains 100% of its value over the years
Heavy-Duty:
- Full length Neoprene gloves and sleeves
- Foot control valve and safety guard
- Blasting gun assembly
- Perforated steel work bench
NO Rivets
NO Spot Welds
NO Caulking Unions
NO Shop/Barrel Vacuum Dust Collectors
|
|
Direct Pressure Blasting:
- Used on tough production abrasive blasting of surfaces.
- Designed for Aggressive or Gentle blasting.
- Operator has precision control of abrasive flow and velocity.
|
Direct Pressure Series Brochure
|
Model
|
Work Area Dimensions
|
Floor Dimensions
|
Work
Stations
|
Door
Opening
Right Side
|
Electrical
|
Abrasive Pressure Pot Vessel
|
Dust
Collector
|
|
ADP
36
|
W:36"
D:30"
H:30"
|
W:63"
D:32"
H:87"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H:28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
1 Cu. Ft. Abrasive Capacity
|
Model: DC9
3/4 hp.
450CFM
45 Sq. Ft. filtration area
9 Tubular filter bags
|
|
ADP
4830
|
W:48"
D:30"
H:30"
|
W:70"
D:37"
H:87"
|
1
|
D: 27.5"
E: 21.5"
F: 13"
G: 16.5"
H:28"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
1 Cu. Ft. Abrasive Capacity
|
Model: DC15
1.5 hp.
900CFM
75 Sq. Ft. filtration area
15 Tubular filter bags
|
|
ADP
4836
|
W:48" D:36" H:36"
|
W:87"
D:53" H:87"
|
1
|
D: 32.5"
E: 26"
F: 12.5"
G: 21.5"
H: 33"
|
1 Phase
110 Voltage
1 switch controls
lights/motor
|
1 Cu. Ft. Abrasive Capacity
|
Model: DC15
1.5 hp.
900CFM
75 Sq. Ft. filtration area
15 Tubular filter bags
|
|
ADP
48
|
W:48"
D:48"
H:48"
|
W:87"
D:53"
H:91"
|
1
|
D: 32.5"
E: 26"
F: 12.5"
G: 21.5"
H: 33"
|
1 Phase
110 voltage
1 switch controls
lights/ motor
|
1 Cu. Ft. Abrasive Capacity
|
Model: DC15
1.5 hp.
900CFM
75 Sq. Ft. filtration area
15 Tubular filter bags
|
|
- Inside Dimensions: 48"W X 36"D X 36"H
|
|
- Ergonomic Style
|
|
- 1 cu. ft. abrasive capacity Pressure Pot
|
|
- Dust Collector: 1.5 HP. Motor,115/208- 230,1ph.
|
|
- 15 Felt Filter Bags, 900 CFM
|
|
|

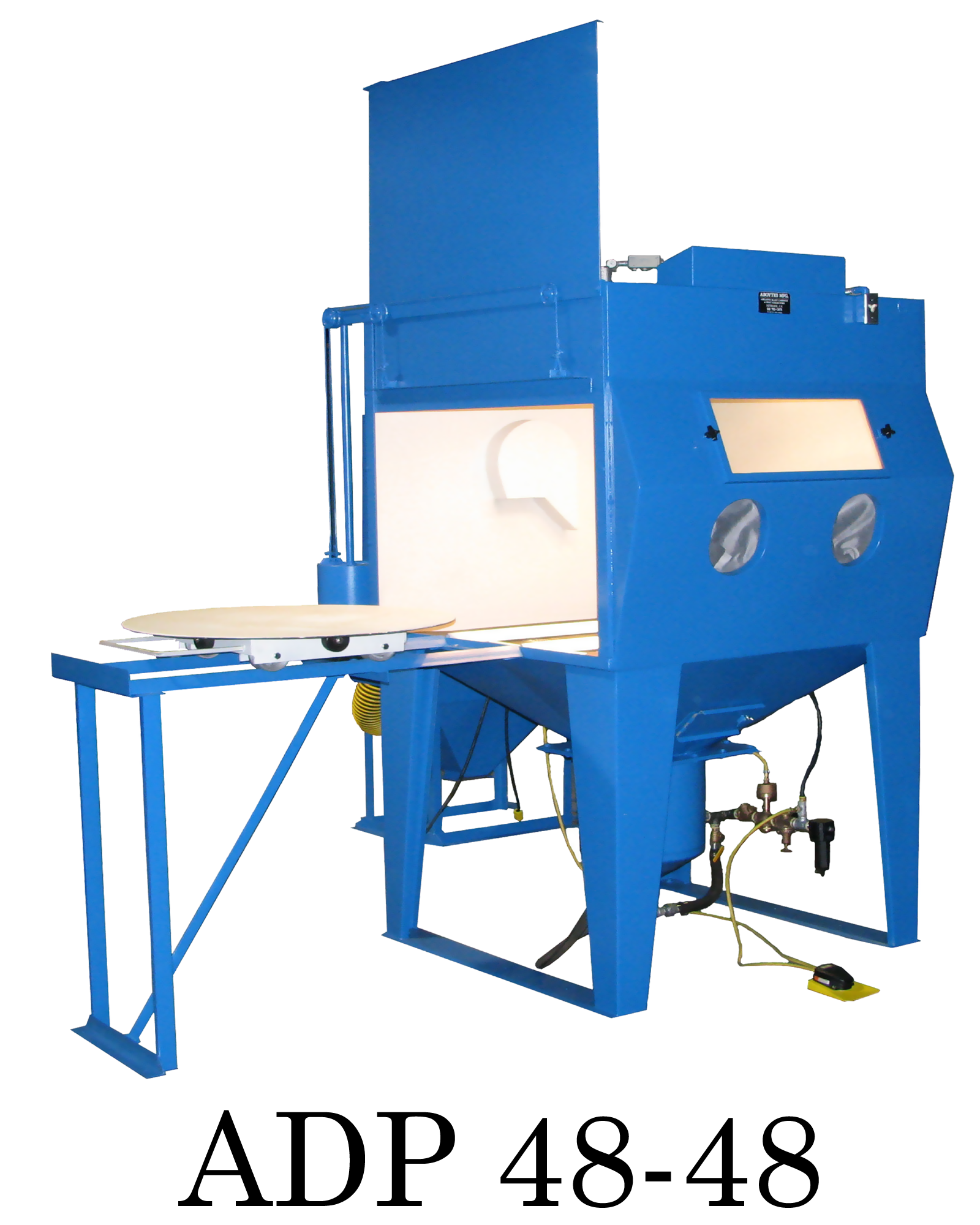

- Inside Dimensions: 48"W X 48"D X 48"H
|
|
- Ergonomic Style
|
|
- Automatic Turntable with Speed Control
|
|
- 1 cu. ft. abrasive capacity Pressure Pot
|
|
- Dust Collector: 1.5 HP. Motor,115/208-230,1ph.
|
| - 15 Felt Filter Bags, 900 CFM |
|
|
- Inside Dimensions: 48"W X 48"D X 48"H
|
| - Counter Balance Door |
|
- Turntable Work Cart & Track Extension
|
|
- 1 cu. ft. abrasive capacity Pressure Pot
|
|
- Dust Collector: 1.5 HP. Motor,115/208-230
|
|
- 15 Felt Filter Bags, 900 CFM
|
|
|
- Inside Dimensions: 72"W X 48"D X 48"H
|
|
- Counter Balance Door
|
|
- Turntable Work Cart & Track Extension
|
|
- 1 cu. ft. abrasive capacity Pressure Pot
|
|
- Dust Collector: 1.5 HP. Motor,115/208 230,1ph.
|
|
-15 Felt Filter Bags, 900 CFM
|
|
| -Inside Dimensions: 72"W X 30"D X 30"H |
| -Dual front door loading |
| -2 independent operator work stations |
| -2 Pressure Pot Vessels 1 cu. ft abrasive capacity ea. |
| -Dust Collector: 1.5 HP. Motor,115/20 230,1ph. |
-15 Felt Filter Bags, 900 CFM |
|

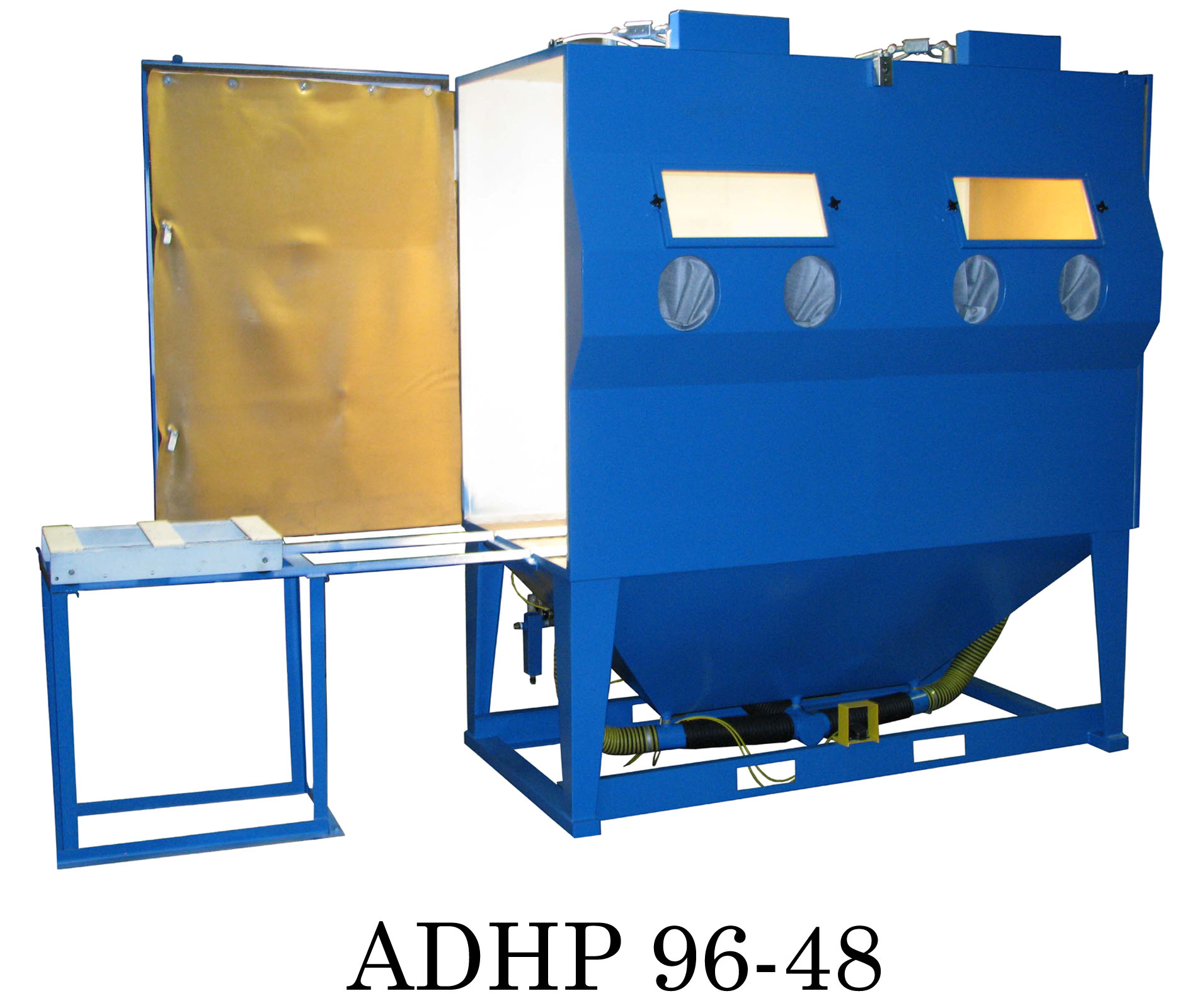

| -Inside Dimensions: 96"W X 48"D X 48"H |
| -Dual front door loading; Left & Right Side Doors |
| -2 independent operator work stations |
| -2 Pressure Pot Vessels 1cu.ft abrasive capacity ea. |
|
|
|
|
|
 |
|
PRESSURE DRY HONE SERIES
Features:
- Fabricated with 12 gauge steel, Continuously welded
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
- Electrical toggle switch to control lights and motor
Maintains 100% of its value over the years
Heavy-Duty:
- Full length Neoprene gloves and sleeves
- Brass foot control and safety guard
- Blasting gun assembly
- Expanded metal work bench
NO Rivets
NO Spot Welds
NO Caulking Unions
NO Shop/Barrel Vacuum Dust Collectors
Pressure Dry Hone Blasting:
- Designed for Aggressive or Gentle blasting.
- Operator has precision control of abrasive flow and velocity.
Abrasive Reclaiming System
- ABOYTES MFG. Cyclone Vortex Reclaiming Systems
are designed to keep abrasive media free of contaminants
while minimizing media waste.
Dry Hone Pressure 36 Series Brochure
|
|
MODEL: ADHP 36-C
|
| Dry Hone Pressure - Cartridge Series |
|
Features:
- Fabricated with 14 gauge steel, Continuously welded
- Built in Cyclone to separate abrasive from waste debris
- Right side loading on standard models
- Full size door opening with abrasive spill proof
- Large window viewing area 25" X 11"
- Exterior laminate automobile safety glass
- Regular inside glass, easy to replace with safety clips
- High flow air regulator and valves
- Air pressure booster and moisture separator
Pressure Dry Hone Blasting:
- Designed for Aggressive or Gentle blasting.
- Operator has precision control of abrasive flow and velocity.
Abrasive Reclaiming System
- ABOYTES MFG. Cyclone Vortex Reclaiming Systems
are designed to keep abrasive media free of contaminants
while minimizing media waste.
Dry Hone Pressure ADHP 36-C Brochure
|
|
|
